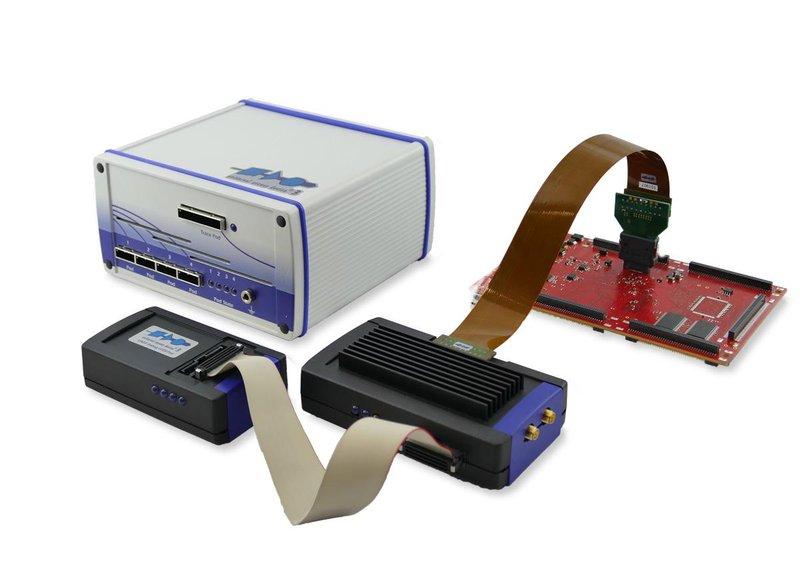

UAD3+ - High-End Trace and Multi-Target Debugging
The UAD3+ (Universal Access Device 3+) is the high-end trace and multi-target device in PLS's Universal Access Device family. It complements the UDE® Universal Debug Engine with powerful, flexible and robust communication to all supported 32-bit and 64-bit microcontrollers and embedded processors.
Combined with the proven debug adapter series from the Universal Access Device family, the 3+ enables access to the target device via a wide range of debug interfaces and offers state-of-the-art, future-proof debugging and programming capabilities, even for the latest multicore SoCs.
The UAD3+ can be expanded with optional high-speed Trace Pods, which support the various trace interfaces of supported devices. With 4 or 8 Gbyte of trace memory, the UAD3+ is the perfect choice for high-end, trace-based debugging, testing, and system-level analysis.

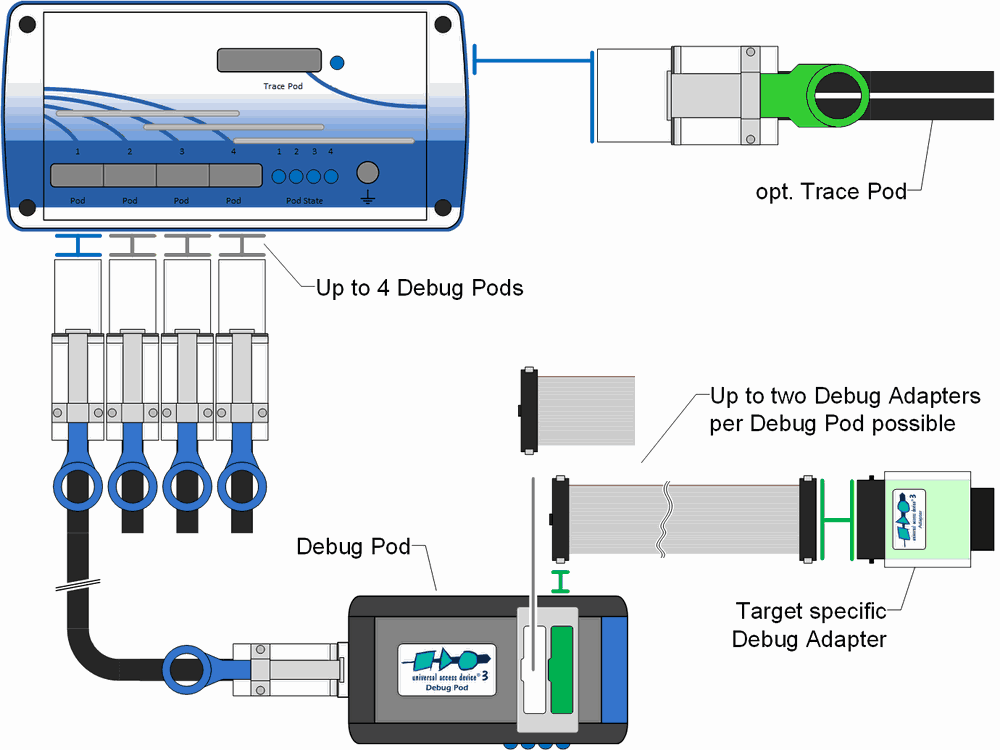

Up to eight target devices can be connected in parallel by the UAD3+, thus enabling it to be utilized for multi-target debugging or parallel Flash programming.
The UAD3+ is optimized for high-speed debug communication between the UDE® running on your PC and the target system.
- Target specific debug adapters ensure flexible and reliable target access
- 8 debug interfaces enable parallel debugging of multiple target systems and parallel flash programming
- High-speed debug access with up to 160 MHz shift clock
- I/O voltage 1.65V – 5.5V
- Galvanically isolated debug adapters (RF coupler technology) with 1,000 VRMS isolation available
- Separate debug pods: Connection to the base unit via serial Gigabit cables (0.5 m, 1 m – default, 2 m, 3 m, and 5 m), which can bridge a distance of up to 5 meters
- DAP, MiniDAP, SWD, JTAG, cJTAG, OnCE, H-UDI
- USB 2.0 for connecting UAD2next to the PC
- Gigabit Ethernet
- Supported operating systems: Windows® 10 64-bit or Windows®11 64-bit
Trace Pods
The UAD3+ allows the recording of real-time trace information up to 500 MHz in parallel and 3.125 Gbit/s in serial trace.
- ETM Mictor and Nexus class 3 Mictor connector
- AURIX and PowerArchitecture Aurora trace connector (up to 4 lanes)
- Samtec ERF8 HS22 ASP-137969-01
- Samtec ERF8 HS34 ASP-137973-01
- Samtec ERF8 HS40 ASP-133811-01
- Additional customer specific trace connectors
- Trace memory up to 4 GByte available
- Time-endless trace for a continuous tracing and observation
- Trace up to 32-bit wide, Half Rate clock mode up to 250 MHz
- Wide range for I/O voltage on the target hardware, 0.8 - 3.3 Volts supported
- Variable time stamps possible, inserted by the trace board frontend
- Intelligent trace filter for optimal trace utilization, Automatic edge detection
- Separate Trace pod is connected to the UAD3+ by a Gigabit serial multi-lane cable up to 5 meters long (0.5 m, 1 m - default, 2 m and 5 m)
- External Trigger Pins.
The UAD3+ Serial Trace Pod 100G is a Trace Pod designed to support high-bandwidth serial trace interfaces and is the latest member of the UAD3+ Trace Pod family.
- Trace memory up to 8 GByte
- High-speed trace port interface (connecting UAD3+ base device)
- Gigabit serial multi-lane cable
- 1 meter in length, options for up to 5 meters
- Trace interface (Debug Interface)
- Maximum 8 serial lanes
- Up to 12.5 Gbit/s per lane
- Maximum overall bandwidth: 100 Gbit/s
- Support for debug signals over trace connector
- Target connectors
- Samtec ERF8 HS22 ASP-137969-01 for Infineon AGBT / SGBT
- Samtec ERF8 HS34 ASP-137973-01 for PowerArchitecture® NEXUS
- Samtec ERF8 HS40 ASP-130367-01 for Arm® HSSTP
- Samtec ERF8 HS46 ASP-130368-01 for Renesas RH8501
- Customer specific trace connectors supported
- Dimensions:
- 7.5cm x 13cm x 4cm
- 3in x 5.1in x 1.6in
Specifications
| Application purpose |
High bandwidth trace recording for trace based system analysis, measurement and debugging Remote debugging Multi-target debugging |
|---|---|
| Supported debug interfaces |
JTAG, cJTAG, DAP, DAP2, SPD (Single Pin DAP), NEXUS, SWD, LPD with up to 160 MHz 1.6 V - 5.5 V IO-voltage (0.8 V - 3.3 V on request) |
| Addl. communication channel support | - |
| Trace support |
Arm CoreSight™ ETM, STM, ITM, PTM, FTM, NEXUS, AURIX and TriCore MCDS UAD3+ Serial Trace Pod 100G with maximum overall bandwidth of 100 Gbit/s Trace Pod for AURIX and PowerArchitecture AURORA, up to 4 Lanes @ 3.125 Gbit/s Parallel Trace Pod, up to 32 bit, up to 500 MHz, 0.8 V - 3.3 V IO-voltage NEXUS, AURIX and TriCore MCDS, CoreSight™ on-Chip trace |
| Trace memory | Up to 4 GByte / 8 GByte (depending on used Trace Pod) |
| Other features |
Separate Debug and Trace Pods for up to 5 meters distance to base device Galvanic isolated target interfaces as an option Ground socket |
| Communciation to host PC | USB2.0, Gigabit-Ethernet |
| Dimensions (W x D x H) |
17 x 14.5 x 8.5 cm 6.7 x 5.7 x 3.4 in |
| Housing material | Aluminum |
